Background

The Radio Jove Project (NASA)

Radio JOVE YahooGroup

Flagg, R., Listening to Jupiter, 2nd Edition (2005)

Thanks go to Richard Flagg, Jim Sky, Wes Greenman, and the rest of the Radio JOVE team for making it easy for amateurs to become involved in this project.

Pictures of the antenna array may be found here.

Observations

The following observations were made at the AJ4CO Observatory in High Springs, Florida.

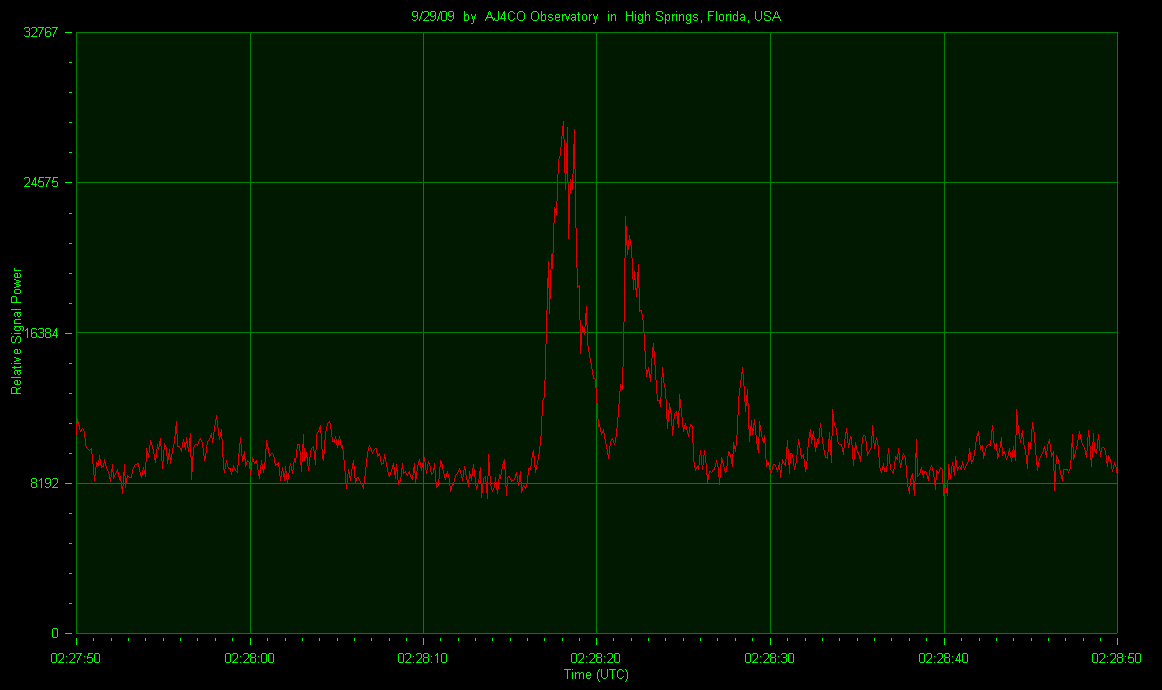

Strip chart data, images, and notes generated by Radio-SkyPipe II software.

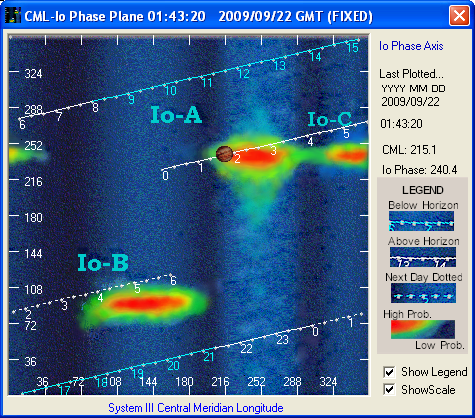

Sky view and CML-Io phase plane images generated by Radio Jupiter Pro 3.

Start (UTC) End (UTC) Frequency Source Data

2009/10/16 00:00:04 2009/10/17 00:00:00

20.1 MHz

 Drift scan

2009/10/15 00:00:01 2009/10/16 00:00:00

20.1 MHz

 Drift scan
2009/10/15 23:49:00 2009/10/15 23:51:00 20.1 MHz Io-B

2009/10/05 00:00:01 2009/10/06 00:00:00

20.1 MHz

 Drift scan

2009/10/04 00:00:01 2009/10/05 00:00:00

20.1 MHz

 Drift scan

2009/10/03 00:00:01 2009/10/04 00:00:00

20.1 MHz

 Drift scan

2009/10/02 00:00:00 2009/10/03 00:00:00

20.1 MHz

 Drift scan

2009/10/01 16:56:08 2009/10/02 00:00:00

20.1 MHz

 Drift scan

2009/09/29 01:00:00 2009/09/29 04:00:00

20.1 MHz

 Io-A
2009/09/22 01:53:15 2009/09/22 01:54:15 20.1 MHz Io-A
2009/09/22 02:27:50 2009/09/22 02:28:50 20.1 MHz Io-A
2009/09/22 02:38:10 2009/09/22 02:39:10 20.1 MHz Io-A
2009/09/22 03:00:00 2009/09/22 03:30:00 20.1 MHz Unknown
2009/09/22 03:34:10 2009/09/22 03:35:10 20.1 MHz Io-A

2009/09/22 01:25:00 2009/09/22 03:25:00

20.1 MHz

 Io-A
2009/09/22 01:26:00 2009/09/22 01:27:00 20.1 MHz Io-A
2009/09/22 01:37:30 2009/09/22 03:38:30 20.1 MHz Io-A
2009/09/22 01:43:20 2009/09/22 01:44:20 20.1 MHz Io-A
2009/09/22 02:09:00 2009/09/22 02:19:00 20.1 MHz Io-A
